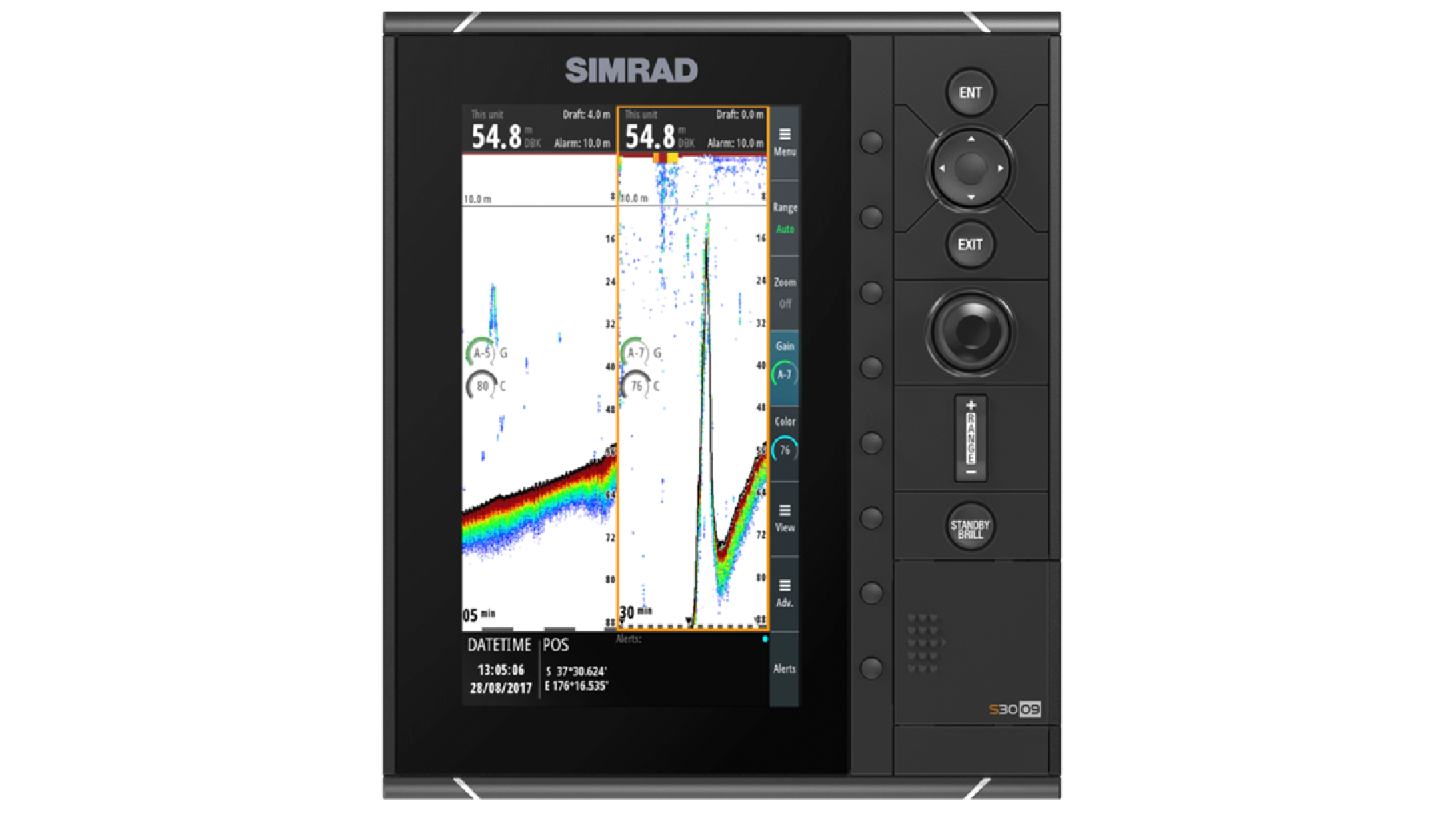

IMO Type Approved Echosounder

The S3009 IMO Echosounder is designed to meet operational needs and SOLAS carriage requirements for workboats, passenger and merchant vessels. The S3009 meets type-approval standards including IMO resolutions A.224(VII) and MSC.74 (69) Annex 4.

Simple, Modern Interface for Easy Operation

The S3009 provides quick access to common tasks such as setting alert depth and changing draft settings.

Single or Dual Transducer Capability

Available as a compact all-in-one system, or an expanded system with the S5100 transceiver, the S3009 uses standard 50 kHz and 200 kHz transducers and can be tailored to specific vessel requirements.

Highly Reliable Data with On-Screen Scrollback and SD storage

The S3009 shows 5, 10, 15, 30, or 60 minutes of data on the primary display and allows scrollback to view previously recorded depth information. A removable SD card can be used to store more than 12 hours of data.

Sophisticated Alert Management

The S3009 features an Alerts Acknowledge button as well as BAM integration for remote alert management. The Alert page displays active alerts and a historical log of alert conditions.

Supports 50 kHz and 200 kHz Transducers

Standard 70 mm diameter transducers facilitate easy installation with existing tanks and gate valves.

High Resolution Display

See data the way you prefer. The S3009 features ten levels of day/night brightness adjustment, and seven colour combinations. Bold bottom-tracking lines can be adjusted for clear interpretation of bottom track.

Industry-Standard Connectivity

The S3009 provides an IEC61162-1/2 (NMEA 0183®) interface to connect with Simrad ECDIS solutions and other Simrad or third-party bridge equipment. IEC 61162-3 (NMEA 2000®) and Ethernet networking are also supported.
